3.7MWH High Efficiency Energy Storage System For Commercial And Industrial

3.7MWH High Efficiency Energy Storage System For Commercial And Industrial



 Large capacity and high power
 High integration and easy installation
 Module design, strong scalability
 Safe and reliable, excellent performance
 High efficiency
 High energy density
 Low maintenance cost



description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

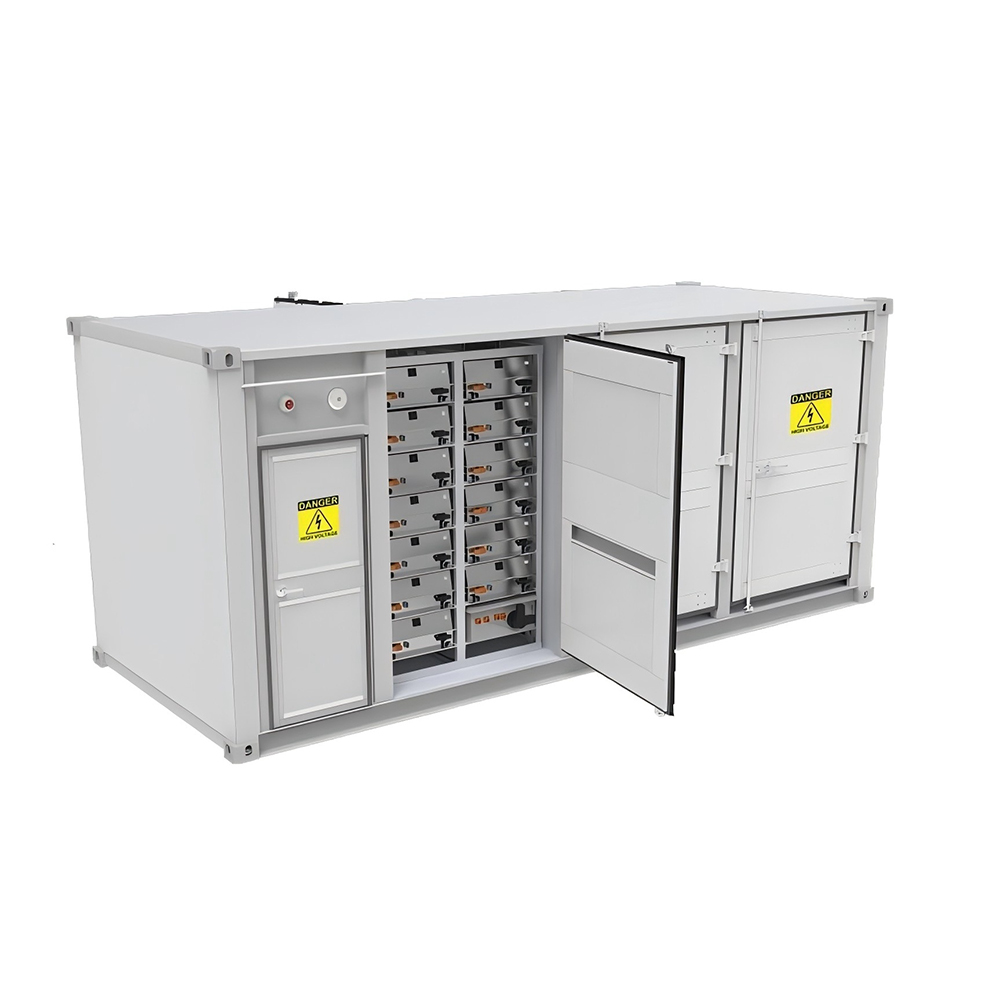

Large container energy storage system is a kind of energy storage solution that utilizes a container as a carrier and integrates batteries, inverters, controllers and other energy storage equipment.

Large-scale industrial energy storage systems are designed to store excess energy generated during low demand periods and release it during peak demand times.

They enhance grid reliability, support renewable energy integration, and provide economic and environmental benefits, making them essential for the transition to a more sustainable energy future.

MODEL

GXY-B-L3.7-1500

Energy density

252.36kWh/m²

Cell type

LFP

Battery pack configuration

1P52S

Battery cluster configuration

1P416S(8Pack)

Number of battery clusters

10

Nominal voltage

1331.2V

Voltage range

1123.2V~1518.4V(Cell voltage:2.7V~3.65V)

Charge and discharge ratio

0.5P/1P

Rated capacity

3727.36kWh

Short-circuit current Communication mode

45KA
Ethernet/RS485/CAN

Communication protocol

Modbus TCP/Modbus RTU/CAN 2.0

Auxiliary power supply

AC480V/60Hz,3P5W

Design standard

GB/T 36276-2018,UL1973,UL9540,UL9540A,UN38.3, IEC62619,NFPA69,NFPA70,NFPA855,NFPA68

Standby power supply

Online(30min,adjustable)

Operating ambient temperature

-20℃ to 55C(-4°to 131°F)

Working altitude

<2000m(2000m~4000m,Downpower operation)

Thermal management

Liquid cooling +air cooling

Size (length*width *height)

6058*2438*2896mm

weight
Protection class

37ton IP55

color

RAL9010

Seismic load strength Noise level

Zone 4
≤75 dB @1m(3.28ft)

Fire protection system

fm200

Field emergency braking

Yes

Remote emergency braking

Yes

Pyrotechnic detection

Cluster +container

Thermal diffusion technique
FCL delivery(built-in battery)

Yes Yes

Battery protection class

IP65

Full power operating range Maximum number of cycles

SOC5%~100%@25°℃
4 Times per day

Product Features

Efficient and Reliable Performance: With a maximum cycle efficiency of 90%, this battery system ensures reliable and efficient energy storage and release, providing a high level of performance and durability.

Compliance with International Standards: The battery system is certified to meet CE, MSDS, and UN38.3 standards, ensuring compliance with international regulations and safety requirements.

Long-Lasting and Durable: With a cycle life of 6000 times, this battery system is designed to provide long-lasting performance and durability, backed by a 10-year warranty.



Power View

Client software that allows for real-time viewing of the operating status and parameters, economic benefits, product information, and historical data of energy storage system.

Supervisor

Intelligent operation and maintenance software that monitors the operation status of energy storage systems, manages operation and maintenance business, predicts maintenance needs 24/7, and provides worry-free system security.

Analyzer

AI data analysis software that uses a large amount of operational data, combined with battery electrochemical models and load operating conditions, to adjust the optimal operating strategy in real time.

Bidder

Virtual power plant software that aggregates resources such as energy storage, charging stations, photovoltaics, and controllable loads, participates in power market trading, and improves asset investment return.







Off Grid mode or power failure working principle:

  1. When PV power is higher than load power, PV supply priority to load power, the remaining to the battery charge.
  2. Battery discharge automatically when PV power is lower than load power, When the battery is discharged to the undervoltage alarm point or minimum SOC(depending on battery type).

Features:

1.Quick yield overview of all your pv plants.

2.All important data at a glance including energy output, yield gains, environment status.

3.Display of all important data about data logger, inverter, environment monitor, smart meter and other key devices.

4.Display of all the warning events of the plant

5.User could manage all PV plants with one same account.

6.All inverter running status are recorded automatically, the warning of fault is highlighted and immediate.

7.Timely e-mail reports on system fault and plant error.

8.Add new plant, edit and delete existed.

9.Intuitive operation to manage all devices.

10.Simple parameters setting for inverters including power management.







Installation Case
Company Introduction



Production Scene
Certificates
FAQ

FAQ

  • Q1: Is there a standard requirement for the installation height of solar storage batteries?

    A: Usually installed between 1.5 meters and 2 meters high for ease of operation and safety.

    1
  • Q2: How long does it take to charge a solar battery system?

    A: This depends on the PV power and customer demands, everything can be customized.

    2
  • Q3: How to determine the quality of a commercial storage system?

    A: Consider cycle life, self-discharge rate, safety features, brand reputation, and user feedback.

    3
  • Q4: What is the approximate price range for a solar battery storage system?

    A: Typically ranges from a few hundred to several thousand yuan, depending on brand, capacity, and technology.

    4
  • Q5: In which scenarios can a commercial storage system be applied?

    A: Used for mines, factories, rural communities, etc.

    5
