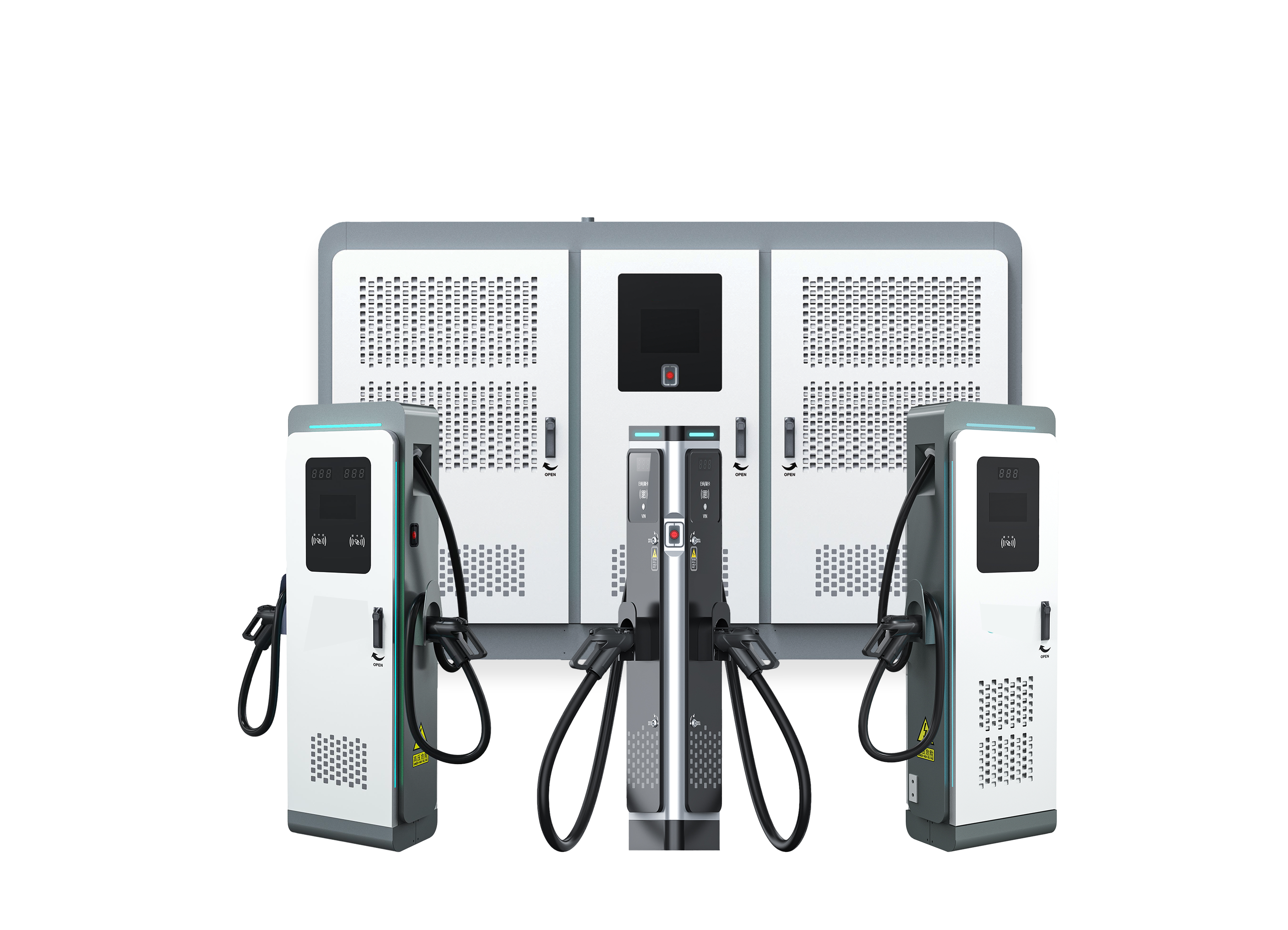

Our intelligent DC EV charger is designed for pure electric and plug-in hybrid vehicles.
It features automatic power factor correction, remote communication, and comprehensive safety measures. Ideal for bus stations and large parking lots, it supports various payment methods and offers multiple charging modes, reducing charging time by 20%.
With IP55 protection and robust safety features, it ensures reliable and secure operation.
|
|
Items
|
Specifications
|
|
Input
|
Input Voltage
|
400V±15%/440V±15%/480V±15%
|
|
Input Voltage Type
|
TN-S
|
|
Working Frequency
|
45~65Hz
|
|
Power Factor
|
≥0.99
|
|
Efficiency
|
≥94%
|
|
Output
|
Rated Voltage
|
CHAdeMO 500Vdc;CCS 1000Vdc;GBT 1000Vdc
|
|
Max Output Current
|
CHAdeMO 125A; CCS 200A; GBT 250A
|
|
Interface
|
Display
|
LCD touch Screen
|
|
Emergency Stop Button
|
Yes
|
|
Payment
|
Mobile APP /RFID/ POS
|
|
Communication
|
Network Connection
|
4G(GSM or CDMA)/ Ethernet /WIFI
|
|
Communication Protocols
|
OCPP1.6J or OCPP2.0
|
|
Working Environment
|
Working Temperature
|
-30℃ ~ +50℃
|
|
Storage Temperature
|
-40℃ ~ +70℃
|
|
Atmospheric Pressure
|
80kPa~110kPa
|
|
Operating Humidity
|
≤95% Non-Condensing
|
|
Altitude
|
≤2000m
|
|
Protection
|
IP55
|
|
Acoustic Noise
|
<60dB
|
|
Cooling Method
|
Forced Air-Cooling
|
|
Mechanical
|
Dimension(Wx DxH)
|
1006mm*640mm*1890mm
|
|
Weight
|
310~420kg
|
|
Cable Length
|
5m or 7m
|
|
Regulation
|
Certificate
|
TUV CE /IEC61851-1 /IEC61851-23 /IEC61851-21-2
|
|
Charging Interface
|
DIN70121 / DIN70122 / ISO15118
|
|
Power
|
AC Input Cable
|
Terminal
|
|
30kW
|
≥4*25mm²+1*16mm²
|
DT25-8,DT16-8
|
|
60kW
|
≥4*50mm²+1*25mm²
|
DT50-8,DT25-8
|
|
80kW
|
YJV-0.6/1kV-3*70mm²+2*35mm²
|
DT70-8,DT70-8
|
|
120kW
|
YJV-0.6/1kV-3*95mm²+2*50mm²
|
DT95-8,DT50-8
|
|
160kW
|
YJV-0.6/1kV-3*120mm²+2*70mm²
|
DT120-10,DT70-10
|
|
200kW
|
YJV-0.6/1kV-3*150mm²+2*70mm²
|
DT150-10,DT70-10
|
